Description

EZVIZ H1C 1080P HOME SECURIT – E-H1C

H1C Type C

Smart Home Wi-Fi Camera

Specifications

Model: CS-H1c

Camera

Image Sensor: 1/3 Progressive Scan CMOS

Shutter Speed: Self-Adaptive Shutter

Lens: 2.8mm, View Angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical)

Minimum Illumination: 0.5 Lux @ (F2.2, AGC ON), 0.1 Lux with IR

Lens Mount: M12

Day & Night: IR-Cut Filter with Auto-Switching

DNR: 3D DNR

IR Night Vision Distance: Up to 32 ft / 10 m

Video & Audio

Max. Resolution: 1920 × 1080

Frame Rate: Max: 25 fps; Self-Adaptive during Network Transmission

Video Compression: H.264

H.264 Type: Main Profile

Video Bit Rate: HD; Standard. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 1 Mbps

Function

Smart Alert: Motion detection

Two-Way Talk: Supports

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Network

Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz – 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Storage

Local Storage: Supports MicroSD Card (Up to 512 GB)

Cloud Storage: Supports EZVIZ CloudPlay Storage (subscription required)

General

Operating Conditions: -10 ºC – 45 ºC (14 °F – 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V / 1A

Power Consumption: MAX. 3.0 W

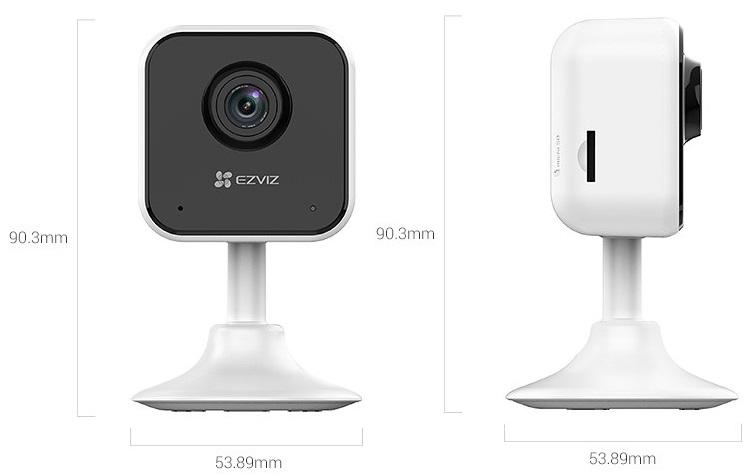

Dimensions: 53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch)

Packaging Dimensions: 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch)

Net Weight: 87 g (3.07 oz)

Weight: (With Package) 305 g (10.76 oz)

In The Box

H1c Camera

Power Adapter

2-Meter Power Cable

Foam Sticker

Metal Plate

Regulatory Information

Quick Start Guide

Certifications: CE/RoHS/WEEE/REACH
