Description

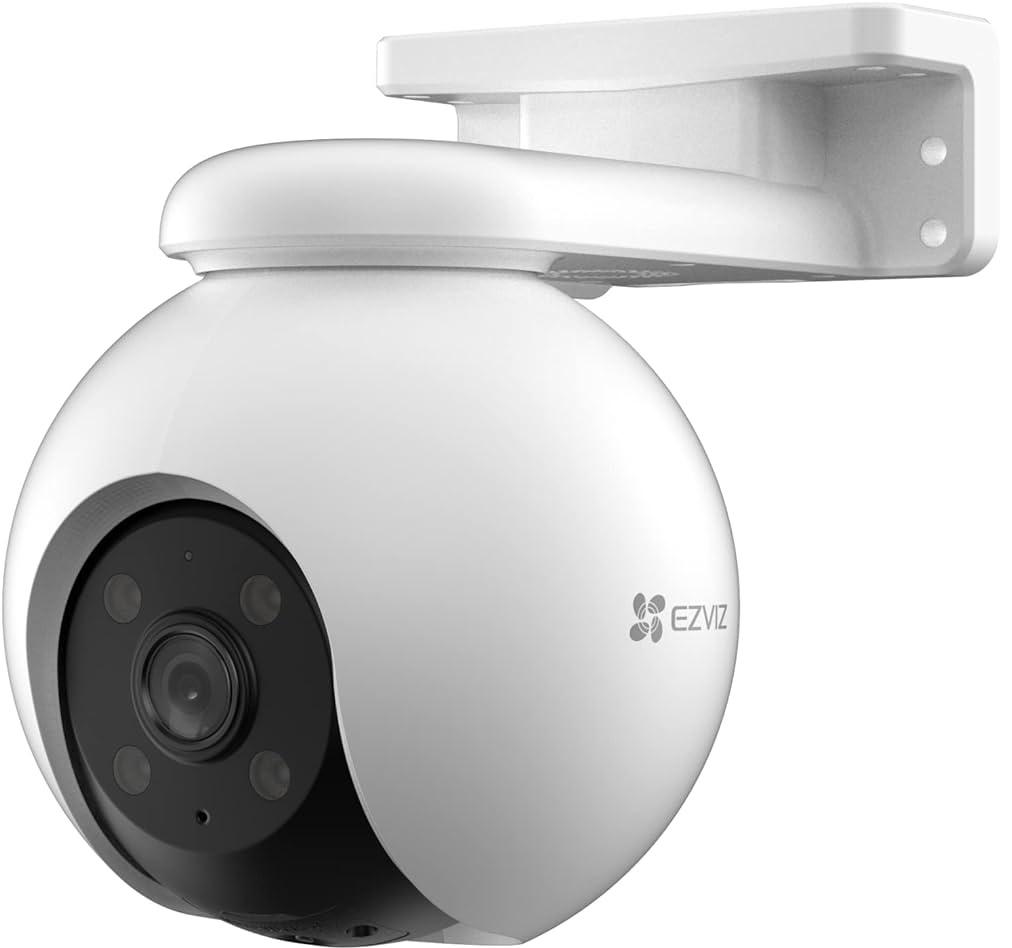

EZVIZ H8 PRO PAN & TILT 2K CAMERA – H8PRO

H8 Pro 2K

Pan & Tilt Wi-Fi Camera in 2K

Specifications

Model: CS-H8-R100-1H3WKFL

Camera

Image Sensor:   1/2.7″ Progressive Scan CMOS

Shutter Speed: Self-Adaptive shutter

Lens:4mm @ F1.6, Viewing angle: 46° (Vertical), 89° (Horizontal)

104° (Diagonal) 6mm @ F1.6, Viewing angle:28° (Vertical), 54° (Horizontal), 62° (Diagonal)

PT Angle: Pan: 340°, Tilt: 80°

Minimum Illumination:0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Lens Mount:M12

Day & Night:IR-cut filter with auto-switching

DNR:3D DNR

WDR:Digital WDR

Night Vision Distance:Up to 30m / 98ft

Video & Audio

Max. Resolution:2304 x 1296

Frame Rate:Max: 30fps; Self-Adaptive during network transmission

Video Compression:      H.265 / H.264

H.265 Type:Main Profile

Video Bit Rate: Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate:2 Mbps

Network

Wi-Fi Standard:IEEE802.11b, 802.11g, 802.11n

Frequency Range:2.4 GHz ~ 2.4835 GHz

Channel Bandwidth:upports 20 MHz

Security:WPA-PSK / WPA2-PSK

Transmission Rate:11b 11 Mbps, 11g 54 Mbps, 11n 72 Mbps

Wi-Fi Pairing:AP pairing

Protocol:EZVIZ Cloud Propriet ary Protocol

Interface Protocol:EZVIZ Cloud Proprietary Protocol

Wired Network:RJ45 × 1(10M / 100M Adaptive Ethernet Port)

Storage

Local Storage:Supports Micro SD card (Up to 512GB)

Cloud Storage:Supports EZVIZ CloudPlay storage (Subscription required)

Function

Smart Alarm: AI-Powered Human / Vehicle Shape Detection, Motion Detection

Auto Tracking: Supports

Customized Alert Area: Supports

Two-way Talk:   Supports

General Function:Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General

Operating Conditions:-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

IP Grade:Weatherproof Design

Power Supply:  DC 12V / 1A

Power Consumption: MAX. 6W

Dimensions:116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch)

Packaging Dimensions:187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch)

Weight Net Weight: 592 g (20.88 oz) With Package: 943 g (33.26 oz) For EU Standard Version

In the box

In the box  – H8 Pro 2K Camera

– Power Adapter

– Screw Kit

– Waterproof Kit

– Drilling Template

– Regulatory Information

– Quick Start Guide

Certifications

Certifications    UL / FCC / CE / WEEE / RoHS / UKCA
