Description

The PRO Series is designed for professionals from all areas of life. The portfolio has remarkable performance and exceptional quality, with the goal of providing users with an incredible experience. Users who are concerned with productivity and efficiency can rely on the MSI PRO Series to help them with multitasking and enhancing efficiency. MSI Lightning Gen 4 PCI-E doubles the bandwidth of an x16 interface to 64 GB/s over the previous generation. MSI PRO series motherboards support all of the most recent storage standards, allowing users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a significant advantage over your opponents.



The improved M.2 thermal solution keeps M.2 SSDs safe while also providing exceptional performance. The upper MOS is covered by the VRM heatsink, which aids in heat dissipation. The chipset heatsink is designed to reduce dust and noise while retaining PCH efficiency. Designed to support the market’s most popular all-in-One and customised water cooling solutions. A dedicated water pump PIN header can handle up to 3 amps, allowing you complete control over the water pump speed. A clearly indicated ‘keep-out-zone’ enables simple and safe installation as well as a flawless fit.



FEATURES:



• • Supports AMD Ryzen™ 7000 Series Desktop Processors



• • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)



• • Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost



• • Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high-performance system and non-stop work



• • High-Quality PCB: 6-layer PCB made by 2oz thickened copper



• • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2



• • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection



• • AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience





SPECIFICATIONS:



• • Socket: AMD Socket AM5



• • CPU: Supports AMD RyzenTM 7000 Series Desktop Processors



• • Chipset: AMD B650



• • DDR5 Memory: 7200+(OC)/ 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) MHz



• • Memory Channel: Dual



• • DIMM Slots: 4



• • Max Memory (GB): 192



• • PCI-E 4.0 x16: 2



• • PCI-E 3.0: 1



• • M.2 Slot: 2



• • SATA 6G: 4



• • RAID: 0/1



• • Wi-Fi and Bluetooth: Intel® Wi-Fi 6E / Bluetooth 5.3

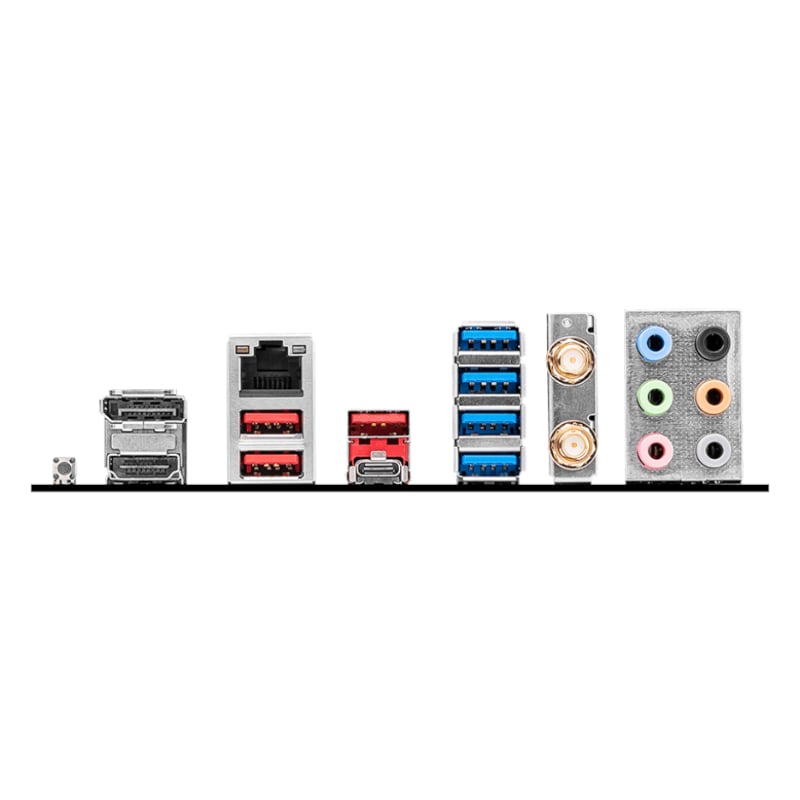

• • USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)



• • USB 3.2 ports (Rear): 1(Gen 2, Type C), 4(Gen 2, Type A)



• • USB 2.0 ports (Front): 4



• • USB 2.0 ports (Rear): 4 (Type-A)



• • Audio ports (Rear): Realtek® ALC897 Codec



• • HDMI: 1



• • DisplayPort: 1



• • DirectX: 12



• • Form Factor: ATX



• • Operating System: Support for Windows® 10 64-bit/11 64-bit



• • Product Dimensions: 24.3 x 30.4 cm





WHAT’S IN THE BOX:

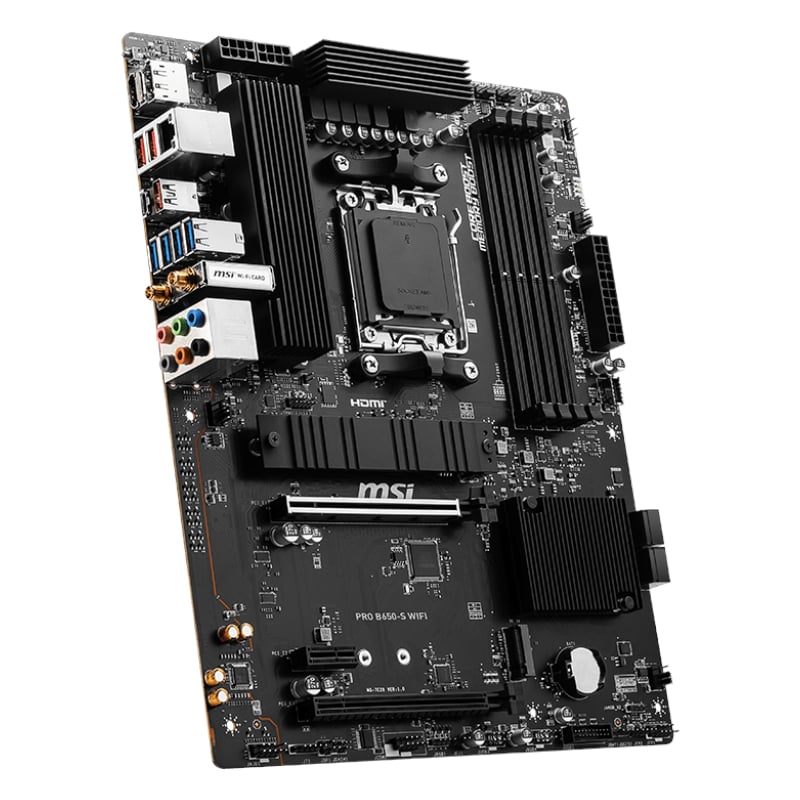

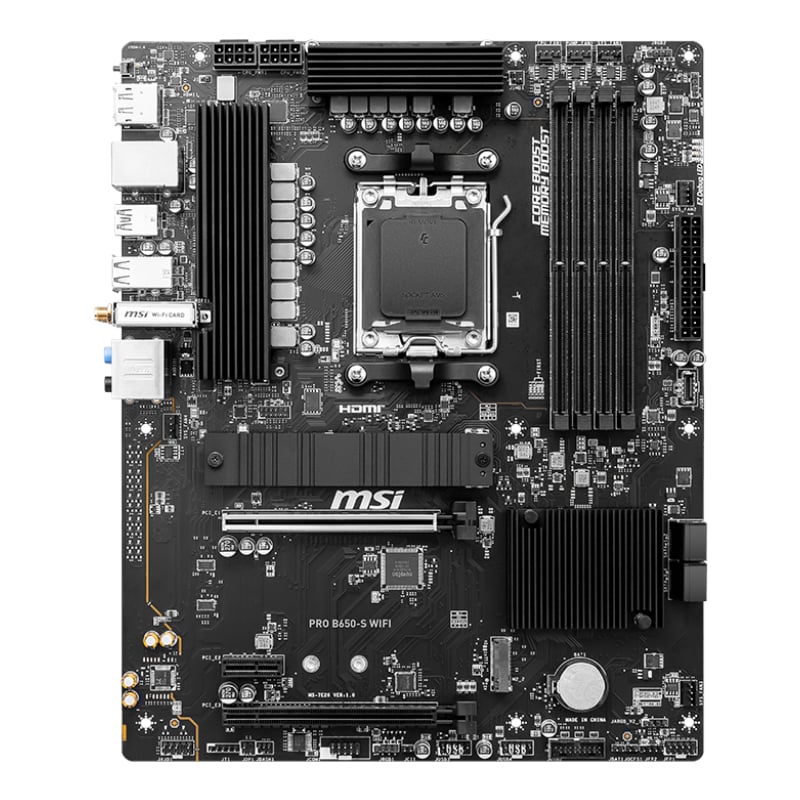

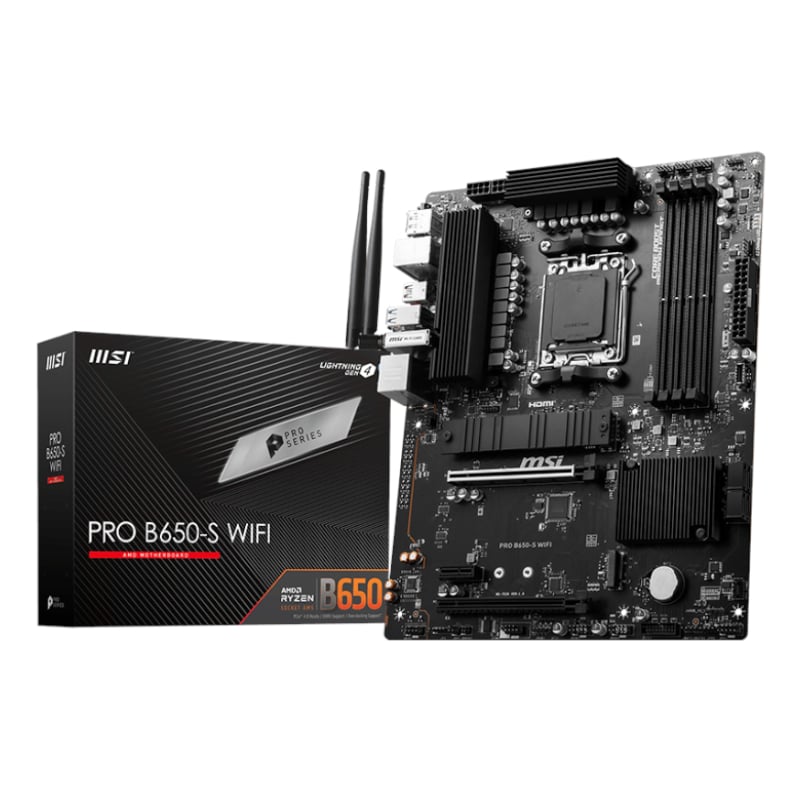

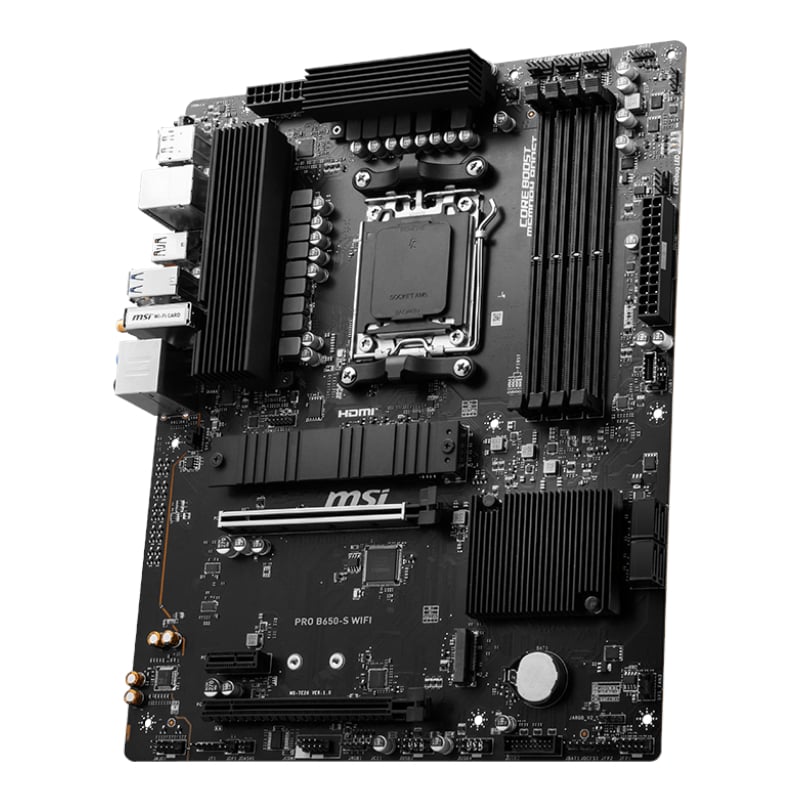

• • MSI PRO B650-S WIFI ATX Motherboard – Black x1



• • Wi-Fi Antenna x2



• • SATA cable x 1



• • EZ M.2 Clip x 1



• • Quick Install Guide x1



• • User Manual x1
