Description

Panoramic tempered glass design | Dual 360mm radiator support | Three ARGB reverse-rotor fans included | GPU anti-sag arm | InfiniRail fan mounting system

Quick Specs

• Showcase your build through a dramatic single-piece curved tempered glass front and side panel for a true panoramic view.
• Keep your system ice-cool with dual 360mm radiator support across the top and side, accommodating serious liquid cooling setups.
• Illuminate every component with three included RS-R ARGB 120mm reverse-rotor fans, controllable directly via your motherboard.
• Build without compromise — support for Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards, plus GPU lengths up to 460mm.
• Connect everything at the front with a USB 3.2 Gen 2×2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and combined audio in/out.

Build Bold. Build Beautiful.

The Corsair FRAME 4500X RS-R ARGB Mid-Tower PC Case is engineered for builders who refuse to compromise on aesthetics or performance. Whether you’re assembling a high-end gaming rig or a powerful workstation, this case delivers a commanding platform that puts your components on full display — wrapped in a sweeping panoramic glass enclosure that sets it apart from anything else on your desk.

A View Like No Other

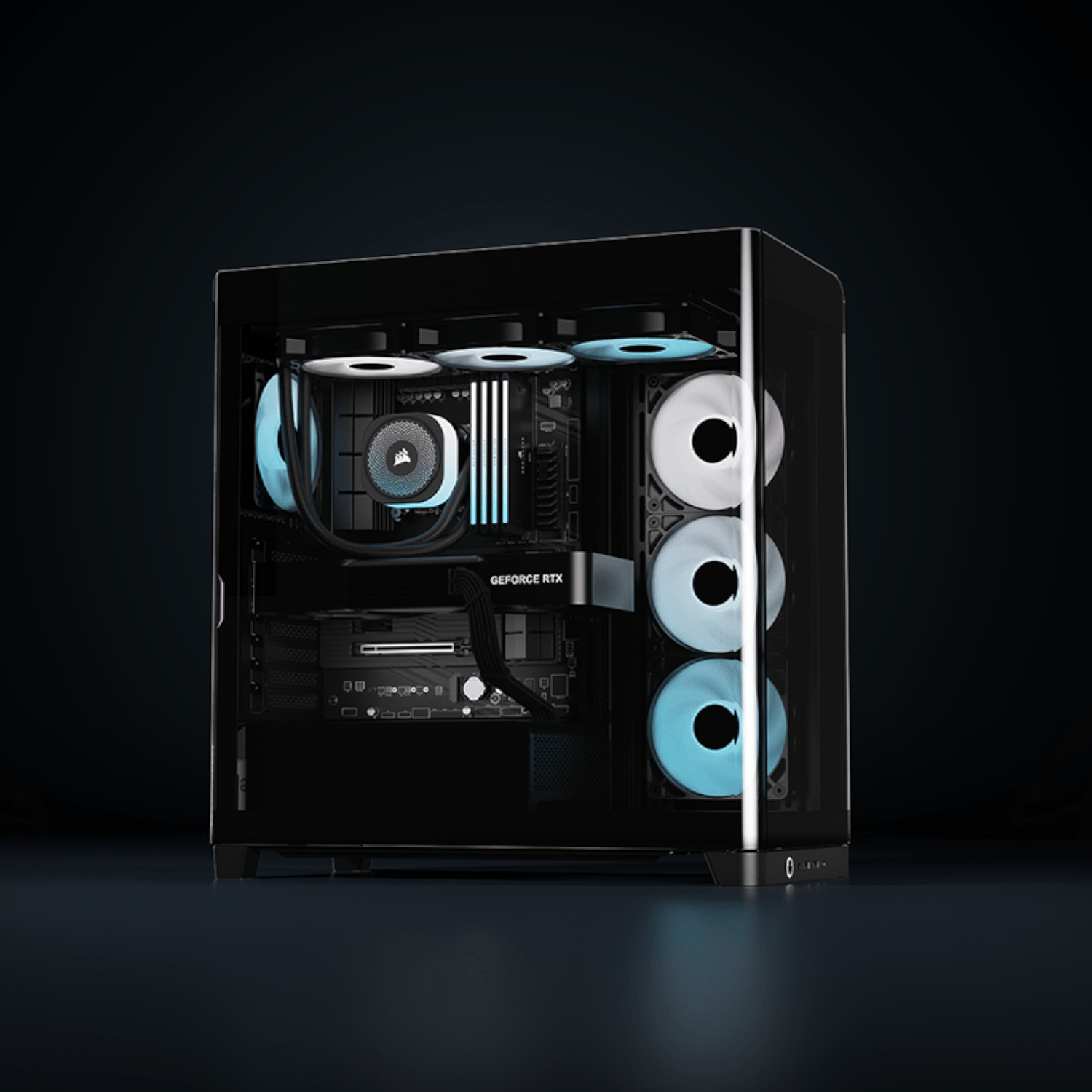

Tired of cases that hide your build behind solid panels? The FRAME 4500X’s single-piece curved tempered glass front and side panel wraps seamlessly around the chassis, giving you an unobstructed panoramic view of every component inside. Three included RS-R ARGB 120mm reverse-rotor fans fill the side with dynamic, controllable lighting — and because they connect directly to your motherboard’s ARGB headers, you can manage the entire light show without needing a separate controller.

Serious Cooling, Seriously Flexible

Thermal headroom is never an afterthought here. The FRAME 4500X supports dual 360mm radiators — one across the top and one along the side — giving liquid cooling enthusiasts the space to run large, high-performance setups without rerouting or sacrificing drive space. Air cooling builds are equally well served, with fan mounting positions across the top, side, bottom, and rear accommodating configurations from a single 120mm exhaust up to a full triple-fan array. CPU coolers up to 185mm tall fit comfortably inside, and the case is confirmed compatible with Corsair’s own H60, H100, H115, H150, NAUTILUS, and TITAN liquid coolers.

Builder-Friendly by Design

Corsair’s InfiniRail Fan Mounting System makes positioning fans and radiators quicker and more intuitive, reducing the fiddly trial-and-error that can slow down a build. The integrated GPU Anti-sag Stabilization Arm protects your graphics card investment — essential when housing GPUs up to 460mm long. With 37mm of cable routing space behind the motherboard tray and support for Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (up to 305mm x 277mm), the FRAME 4500X accommodates both compact and full-sized platforms. Reverse connector motherboard compatibility means next-generation no-cable-clutter builds are supported right out of the box. Seven horizontal or three vertical expansion slots, dust filtration, and a front I/O panel featuring a USB 3.2 Gen 2×2 Type-C port complete the package.

Features

• Single-piece curved tempered glass front and side panel for a panoramic, unobstructed view of your build.
• Three RS-R ARGB 120mm reverse-rotor fans included, with easy motherboard ARGB PWM control.
• Dual 360mm radiator support — top and side — for expansive liquid cooling configurations.
• InfiniRail Fan Mounting System simplifies fan and radiator positioning during the build process.
• GPU Anti-sag Stabilization Arm supports graphics cards up to 460mm in length.
• Compatible with reverse connector motherboards for clean, cable-free aesthetics.
• Supports Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305mm x 277mm) motherboards.
• Front I/O: 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out.
• Vertical GPU mount supported (riser card sold separately).
• Dust filtration included throughout.

Specifications

• Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
• Side Panel: Tempered Glass
• Included Fans: 3
• Max GPU Length: 460 mm
• Max CPU Cooler Height: 185 mm
• Radiator Support: Top: 360mm, 280mm, 240mm, Side: 360mm, 280mm, 240mm, Rear: 140mm, 120mm
• Front I/O: 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out
• RGB Lighting: Yes
• PSU Included: No
• Colour: Black
• Warranty: 24 months
• Product Dimensions: 49.9 x 24.6 x 47.8 cm
• Product Weight: 14260g

What’s in the Box

• Corsair FRAME 4500X RS-R ARGB Panoramic Glass Mid-Tower PC Case – Black x1

Why Corsair

Corsair has spent decades at the forefront of PC building, engineering components and cases that meet the demands of serious builders and gamers alike. Backed by a global reputation for quality and a 24-month warranty, Corsair products give South African builders the confidence to invest in a platform that performs beautifully — and looks the part doing it.
