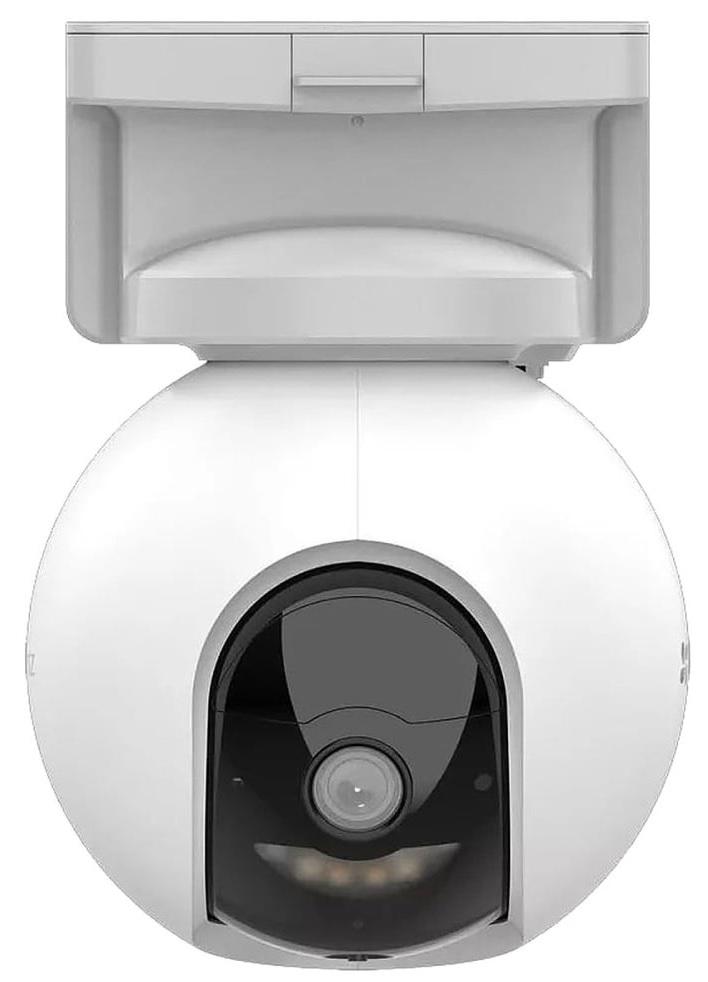

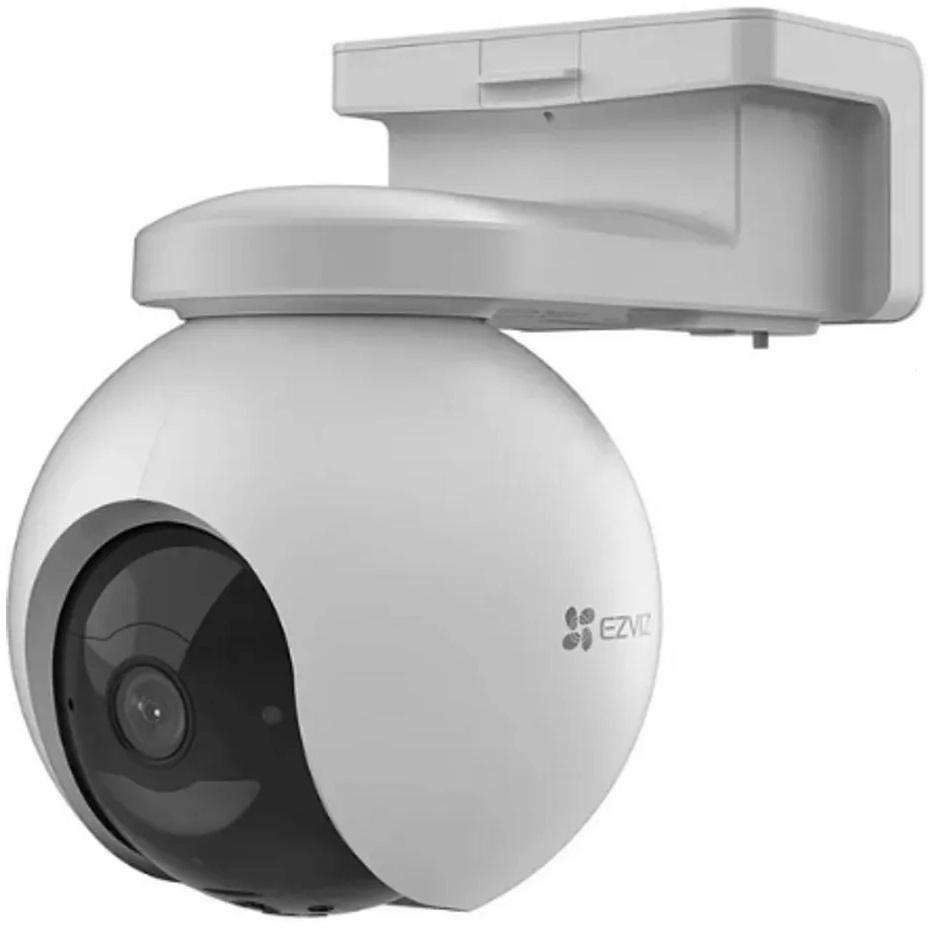

EZVIZ EB8 2K BATTERY-POWER PT 4G CAMERA – E-EB8

EB8 4G 2K

Pan & Tilt 4G Battery Camera

Specifications

Model: CS-EB8 (3MP, 4GA)

Camera

Image Sensor: 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed: Self-Adaptive Shutter

Lens: Viewing Angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical)

PT Angle: Pan: 340, Tilt: 65°

Day & Night: IR-Cut filter with Auto Switch

DNR: 3D DNR

Night Vision Distance:   IR 15 m, Color Night Vision 15 m

Video & Audio

Max Resolution: 2304 x 1296

Frame Rate: Max. 15fps; Self-Adaptive during Network Transmission

Video Compression: H.265 / H.264

Video Bit Rate: Quad-HD; Full- HD; Hi-Def. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 1.5 Mbps

Network

Frequency Bands

EU:

LTE FDD: B1/B3/B7/B8/B20/B28

LTE TDD: B38/B40

LA:

LTE FDD:

B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66

LTE TDD: B38/B40

Function

Smart Alarm: Smart human motion detection

GPS: Supports

Two-way Talk: Supports

General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage: Supports MicroSD Card (Up to 512G)

Cloud Storage: EZVIZ Cloud Storage

General

Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), Humidity 95% or less (non-condensing)

IP Grade: IP65

Power Supply:  DC 5V/2A (Adapter needs to be purchased separately)

Battery Capacity: 10400 mAh

Power Consumption: Max. 10W

Product Dimensions: 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)

Packaging Dimensions: 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)

Weight Net Weight: 835 g (26.8 Oz) With package: 1072 g (34.4 Oz)

In The Box

EB8 4G Camera

Drilling Template

Type C Cable

 SIM Card Adapter

Screw Kit

Quick Installation Guide

Regulatory Information

Quick Start Guide

Certifications

Certifications: CE / WEEE / RoHS / UKCA/ REACH
